CasterBot 6mm Coupling Aluminum Hub CB18022 for CB14148 48mm Omni Wheels

$13.95

Compare
Add to wishlist
SKU: CB18022 Categories: , , Tags: , , ,
Description

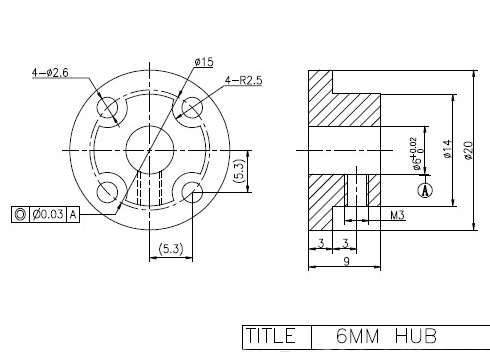

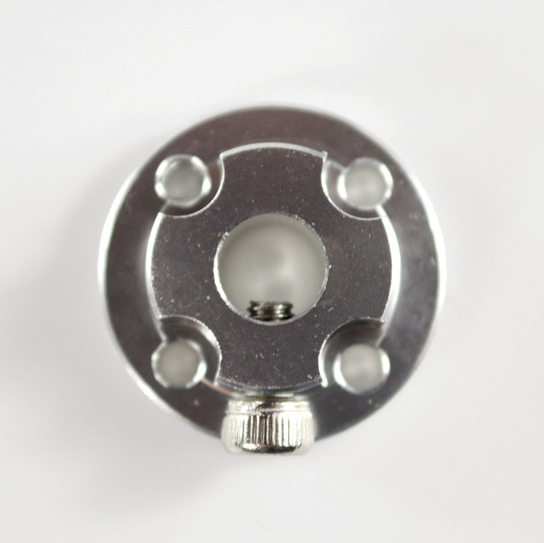

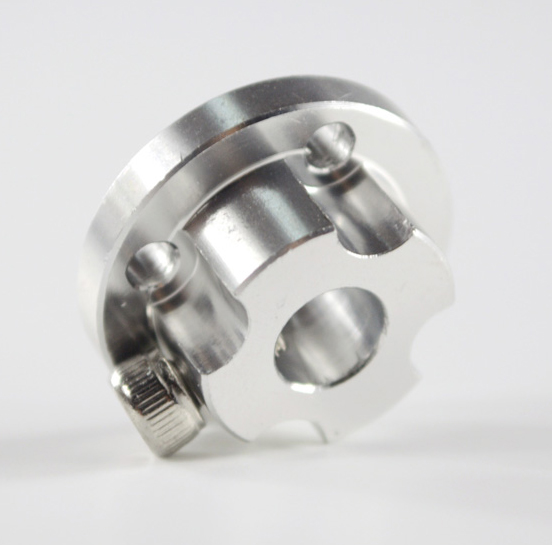

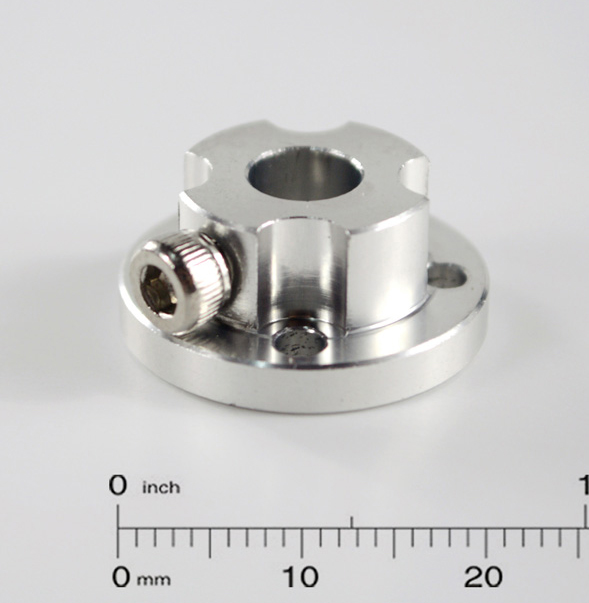

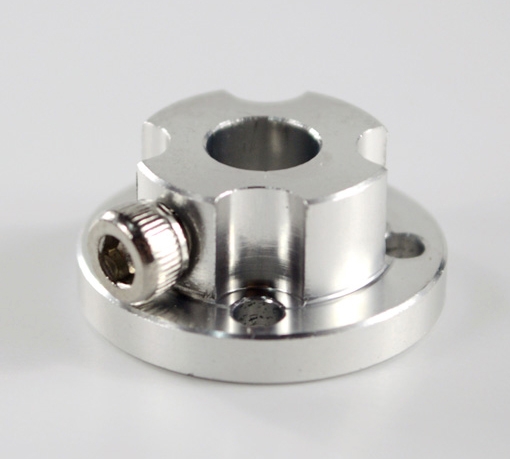

The 6mm coupling aluminum mounting hubs allows you to mount robot wheels and mechanisms to 6mm motor shafts. It was designed to connect our 48mm aluminum omni wheel and a motor with 6mm motor shaft.

CasterBot 6mm Coupling Aluminum Hub CB18022 for CB14148 48mm Omni Wheels





Key Features:
Used to connect 48mm aluminum omni wheel and a motor
Material: Aluminum-alloy
Bore length: 14mm
Outside diameter: 20mm
Net weight: 5g
Inside diameter: 6mm

Packing Listing:

1 x 6mm Coupling Aluminum Hub CB18022

Additional information
Weight0.1 kg
