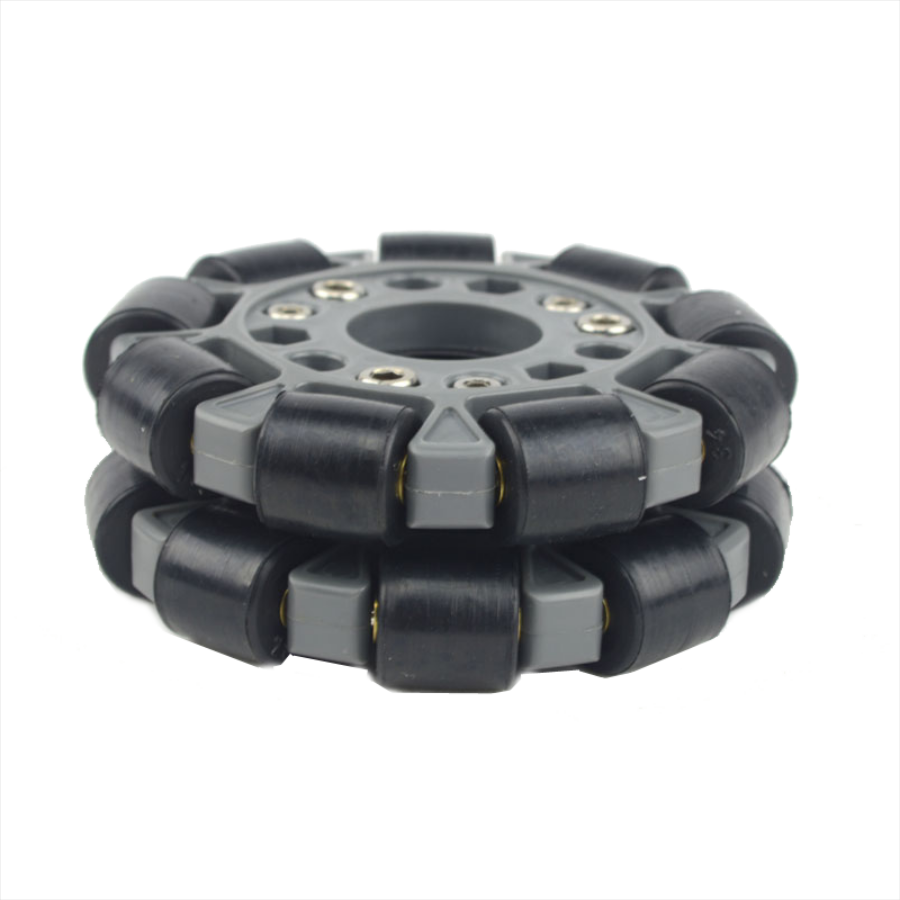

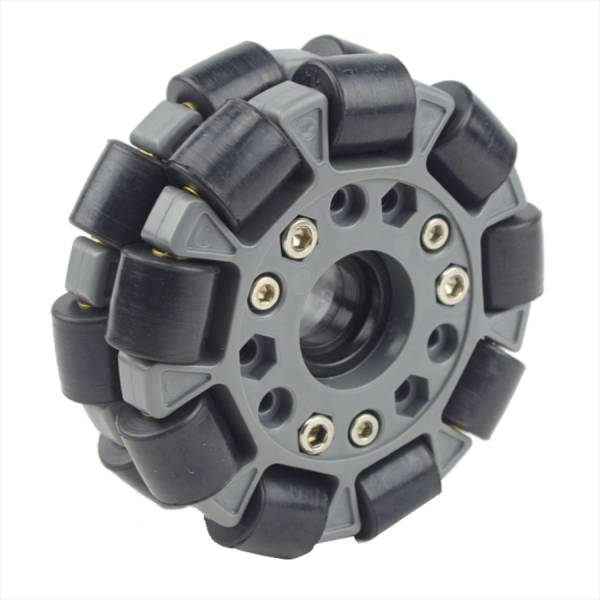

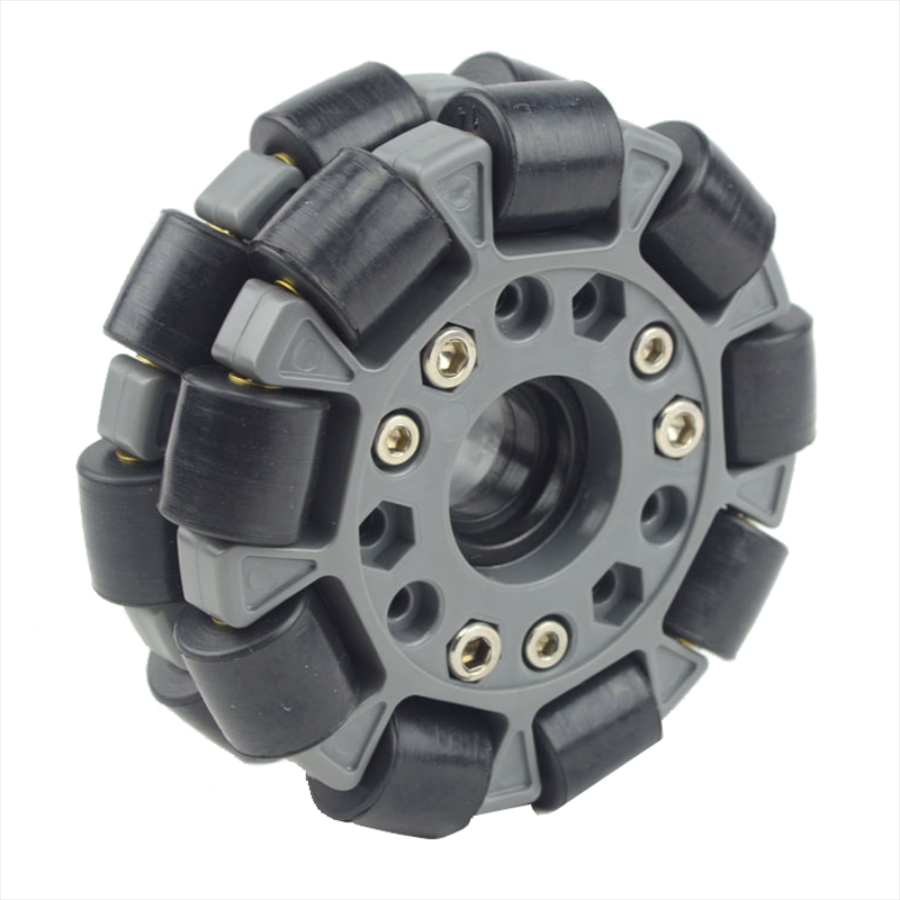

100mm Omnidirectional Wheel (Brass Bearing for Rollers)
100mm Omnidirectional Wheel (Brass Bearing for Rollers)
100mm Omnidirectional Wheel (Brass Bearing for Rollers)
100mm Omnidirectional Wheel (Brass Bearing for Rollers)
100mm Omnidirectional Wheel (Brass Bearing for Rollers)
Click to enlarge
HomeRobot Parts 100mm Omnidirectional Wheel (Brass Bearing for Rollers)
Previous product
65mm Rubber Wheels Compatible with TT Motor
65mm Rubber Wheels for TT Motor Pair $5.99
Back to products
Next product
4 Inch Heavy Duty Mecanum Wheel 100mm Industrial Wheels
4 Inch Heavy Duty Mecanum Wheel 100mm Industrial Wheels $399.95

100mm Omnidirectional Wheel (Brass Bearing for Rollers)

$24.95

Compare
Add to wishlist
SKU: CB049 Categories: Mecanum Wheels, Robot Parts, Robot Wheels Tags: Omni directional Wheel, Omni Wheels 100mm, Omni wheels 4 inch, Omnidirectional Wheel, Omnidirectional Wheels, Omnidirectional Wheels 4 inch
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

100mm Omnidirectional Wheel (Brass Bearing for Rollers)

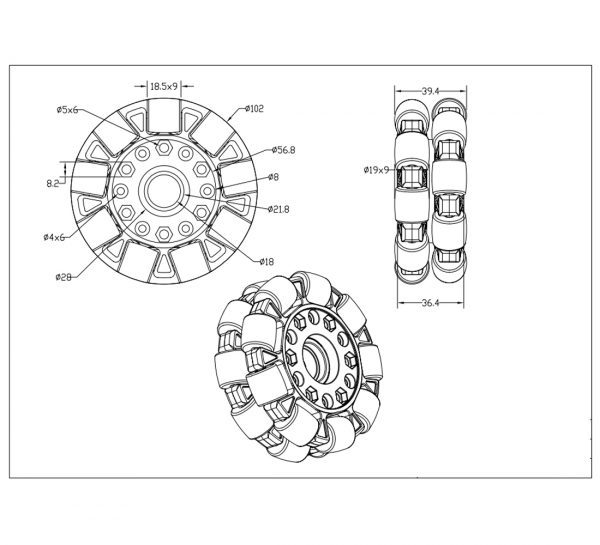

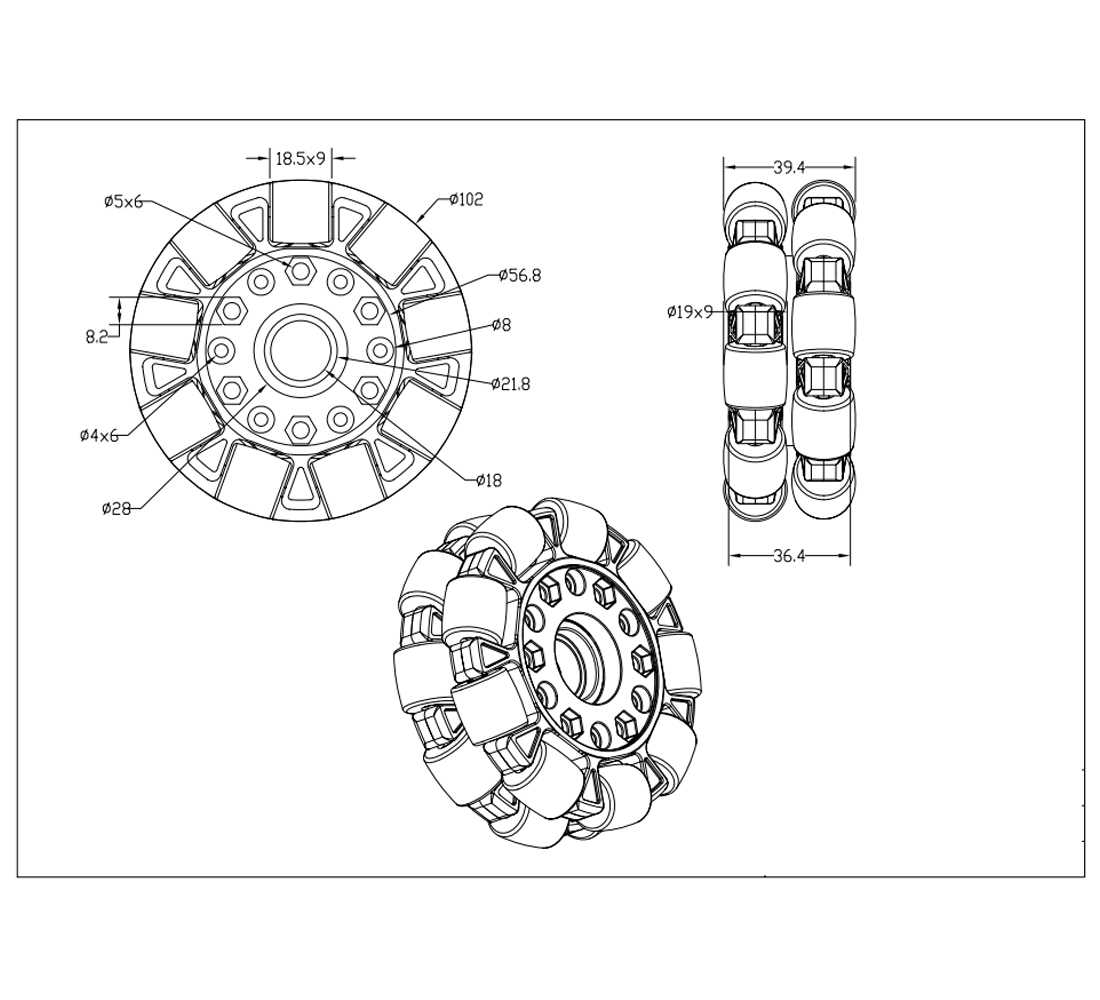

Specifications:

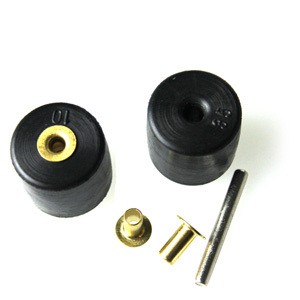

Roller bearing material: Brass tube
Roller diameter: 19mm
Net weight: 290g
Body material: Nylon
Roller material: Rubber

Description

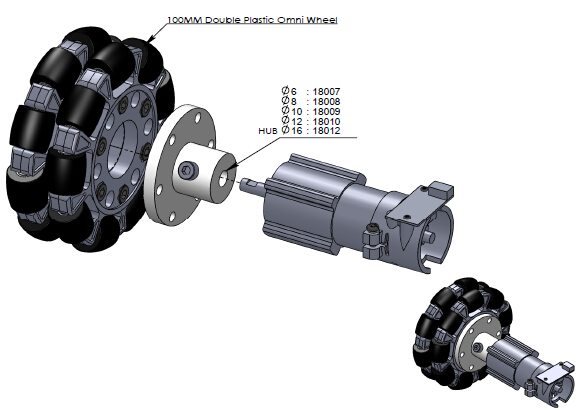

100mm double plate plastic omni wheel
Load capacity: 20kg
Axial width: 16mm
Number of rollers: 18
Nexus Robot introduces the 100mm Omnidirectional Wheel (Brass Bearing for Rollers). This omni-wheel could be mounted to Nexus Robot kit 10003 and 3WD Omni-Directional Arduino Compatible Mobile Robot. The Omni-directional wheels are unique as they are able to roll freely in two directions. The Omni-direction wheels allow a robot to convert from a non-holonomic to a holonomic robot. A non-holonomic robot that uses normal wheels has only 2 out of 3 controllable degrees-of-freedom - moving forward/backwards and rotation. Not being able to move side ways makes a robot slower and less efficient in reaching its given goal.

Brief introduction of Omni-wheel
Omni-directional wheels are unique as they are able to roll freely in two directions .It can ether
roll like a normal wheel or roll laterally using the wheels along its circumference.Omni-direction
wheels allow a robot to convert from a non-holonomic to a holonomic robot.A non-holonomic
robot that uses normal wheels has only 2 out of 3 controllable degrees-of-freedom which
are,moving forward/backwards and rotation.Not being able to move side ways makes a robot
slower and less efficient in reaching its given goal. The holonomic omni-directional wheels are
able to overcome this problem,as it it a highly maneuverable.Unlike normal non-holonomic
robot,the holonomic omni-directional robot can move in an arbitrary direction continuously
without changing the direction of the wheels.It can move back and forth,slidewaysmand rotates
at the same position.

Package List:

1 x 100mm Omnidirectional Wheel (Brass Bearing for Rollers)

Working principle of 4 Omnidirectional Wheels robotWorking principle of 3 Omnidirectional Wheels robot

Additional information
Weight0.3 kg
Reviews (0)

Reviews

There are no reviews yet.
