5 Inch Aluminium Mecanum Wheels 127mm Load Capacity 45kg/Set

5 Inch Aluminium Mecanum Wheels 127mm Load Capacity 45kg/Set

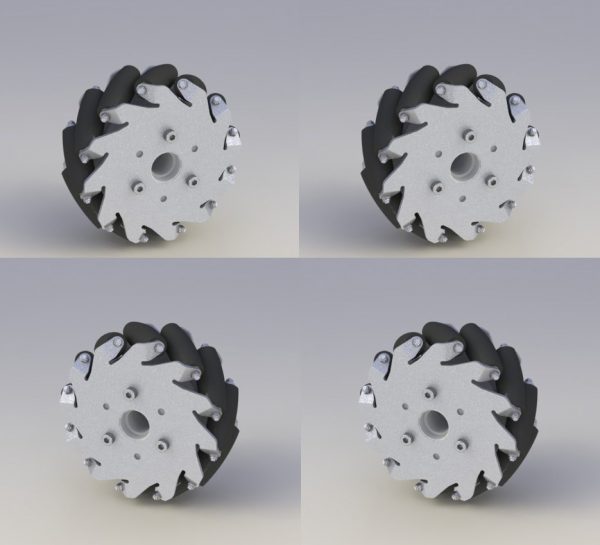

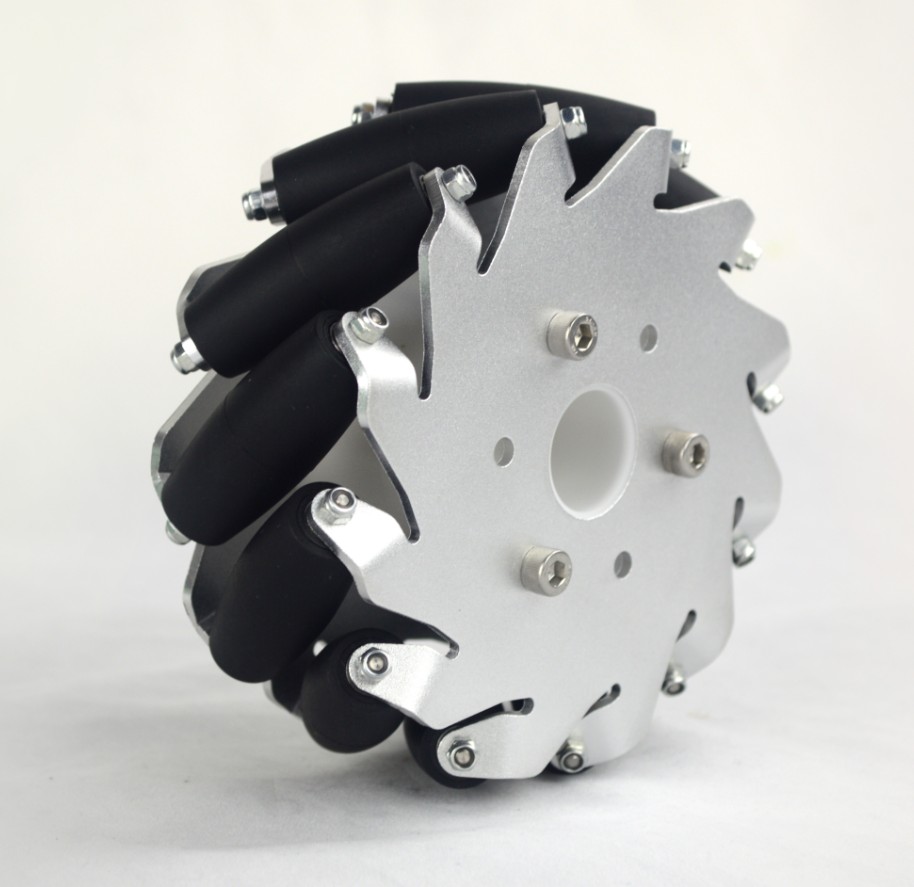

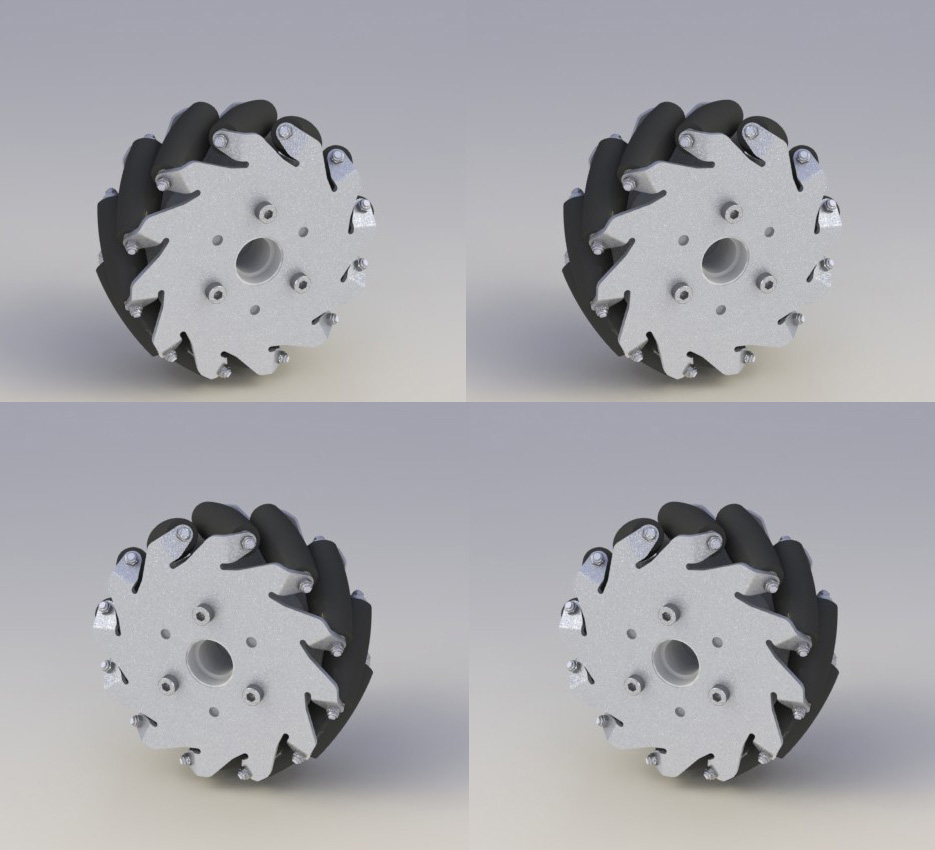

The 5 Inch Aluminium Mecanum Wheels Basic Rollers includes 2 right wheels and 2 left wheels. Each wheel is comprised of 12 rollers.

CasterBot Industry Mecanum wheel is Heavy Duty Mecanum Wheel. Each High-strength wheel hub and great-quality material ensure the series an excellent performance. CasterBot Industry Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions. It can be used in industry, install on the heavy duty omni moving platform to make the platform rotate to omni directions. And it mainly used in industry , workshop, AGV and so on . It can even used on stage show equipment.

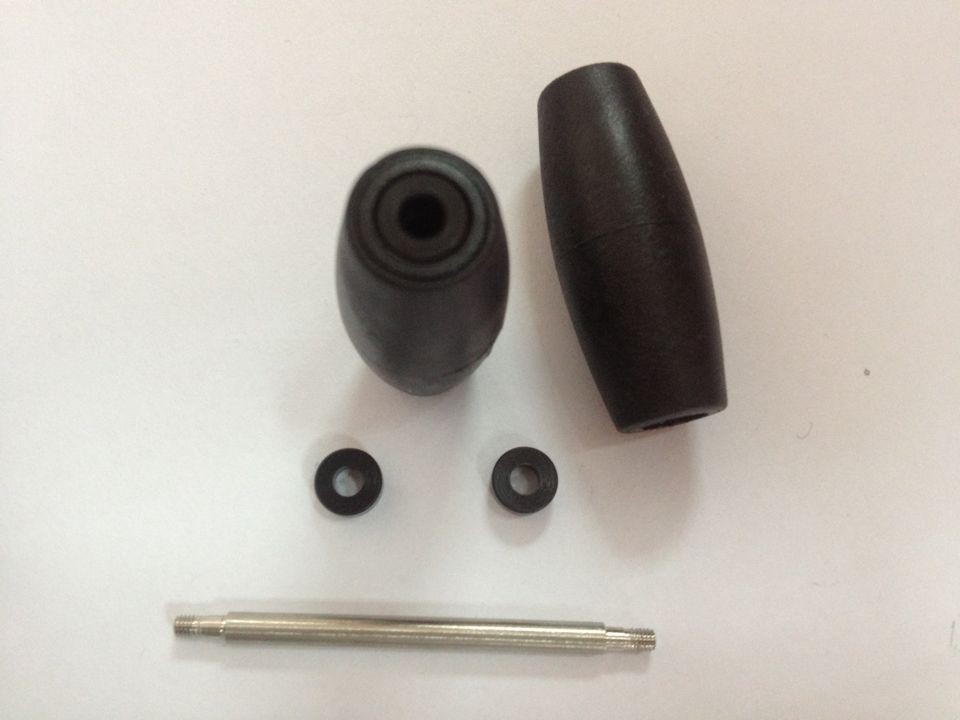

It is driven independently. The Mecanum wheel is capable of moving in any direction, no need to change the directions the wheel spin. Every one of the four wheels contains a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.

Specification:

Diameter: 127 mm
Width: 51 mm
Number of Rollers: 12
Number of Plates: 2
Body material: Aluminium alloy
Roller material: Polyurethane
Spacer material: Aluminum
Net weight: 500 g*4
Load capacity: 45kg/set

Package List:
2 x Right Aluminium Mecanum Wheels 127mm
2 x Left Aluminium Mecanum Wheels 127mm
