CasterBot 127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers Load capacity 45kg/Set
CasterBot 127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers Load capacity 45kg/Set
CasterBot 127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers Load capacity 45kg/Set
Click to enlarge
HomeRobot Parts 127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers
Previous product
5 Inch Aluminium Mecanum Wheels 127mm Load Capacity 45kg/Set
5 Inch Aluminium Mecanum Wheels 127mm Load Capacity 45kg/Set $159.95
Back to products
Next product
Industrial Mecanum Wheels 5 Inch Heavy Duty Stainless Steel Wheel 127mm Load capacity: 150kg/Set
Industrial Mecanum Wheels 5 Inch Heavy Duty Stainless Steel Wheel $645.99

127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers

$199.95

Compare
Add to wishlist
SKU: CB14193 Categories: Mecanum Wheels, Robot Parts, Robot Wheels Tags: Aluminium Mecanum Wheels, mecanum wheel set, Mecanum Wheels, Mecanum Wheels 5 inch, Mecanum Wheels Bearing
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

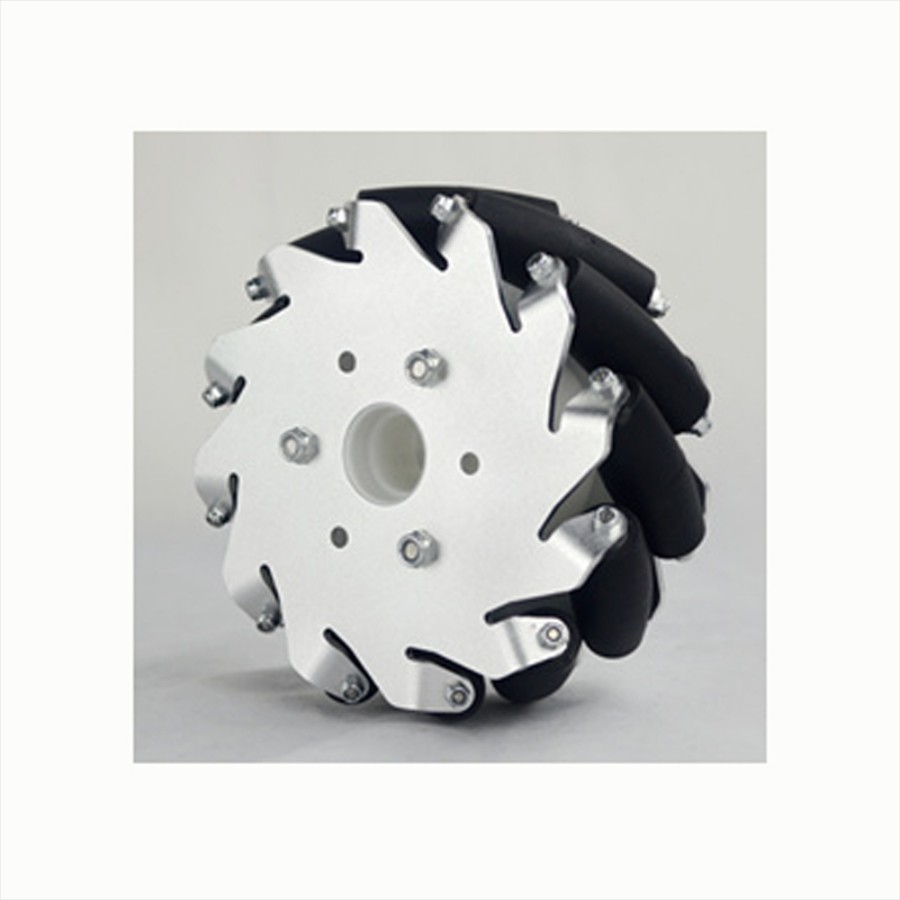

127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers Load capacity: 45kg/Set

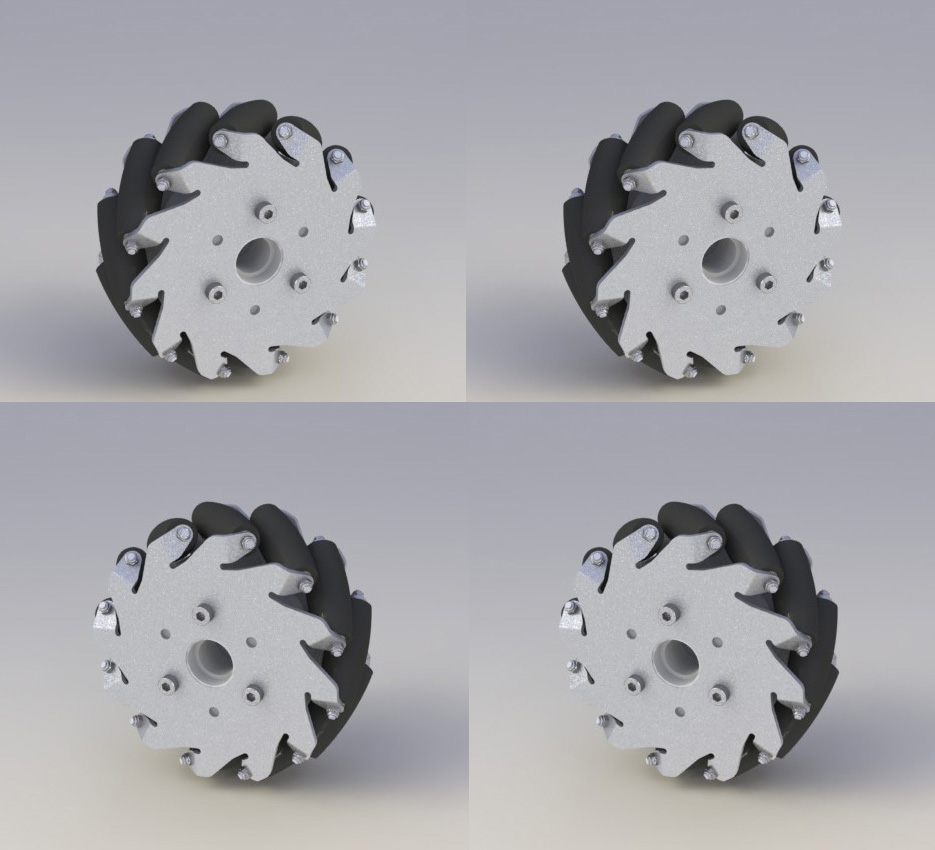

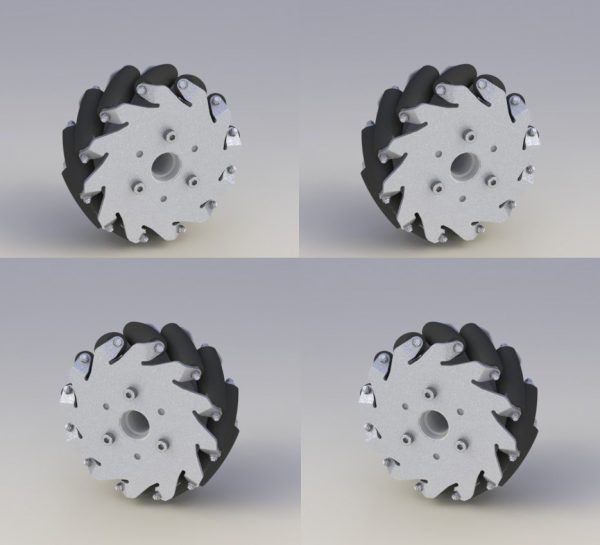

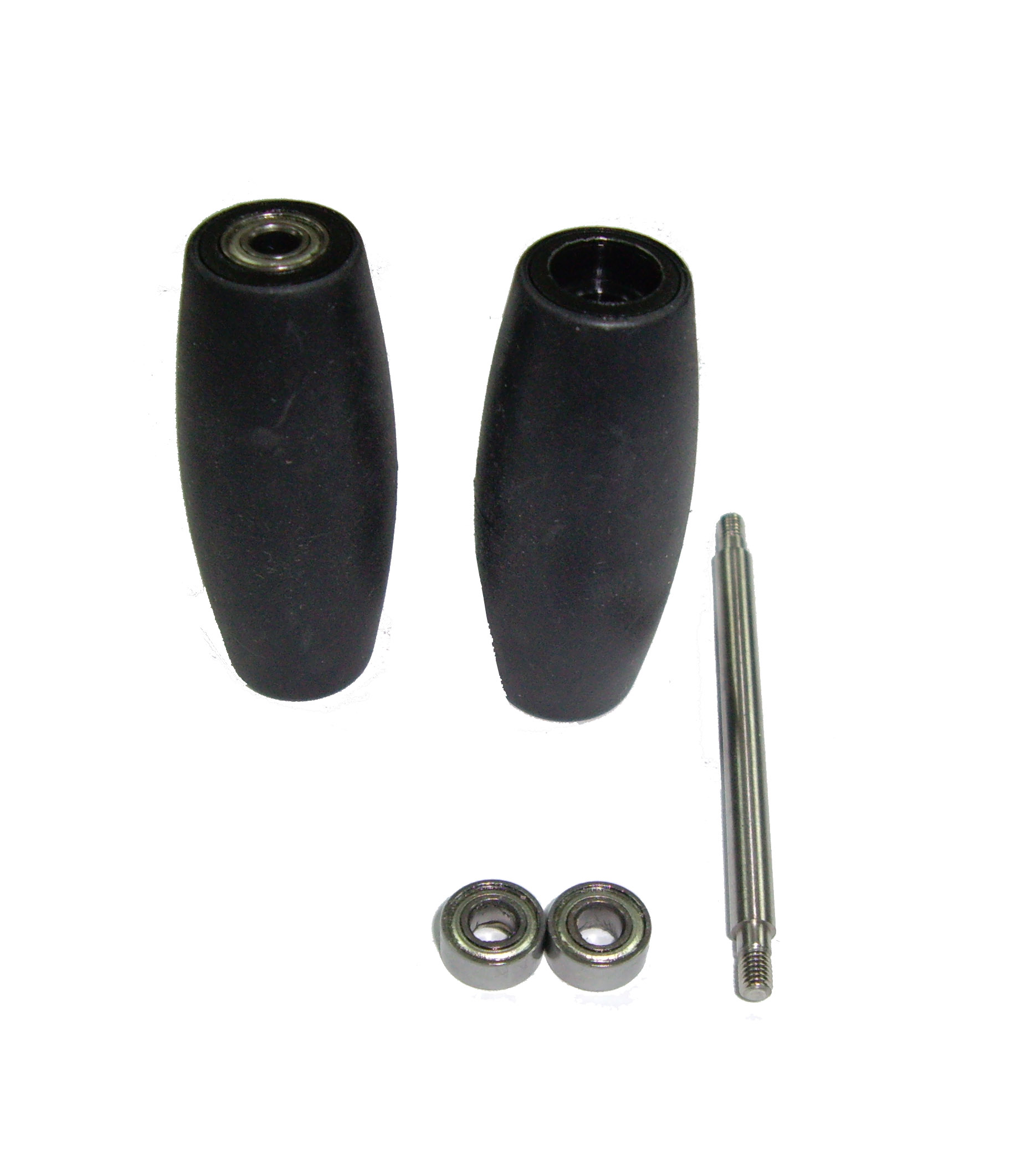

The 127mm Aluminium Mecanum Wheels 5 Inch Bearing Rollers 2 right wheels and 2 left wheels. Each wheel is comprised of 12 rollers and 24 Bearings.

CasterBot Industry Mecanum wheel is Heavy Duty Mecanum Wheel. Each High-strength wheel hub and great-quality material ensure the series an excellent performance. CasterBot Industry Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions. It can be used in industry, install on the heavy duty omni moving platform to make the platform rotate to omni directions. And it mainly used in industry , workshop, AGV and so on . It can even used on stage show equipment.

It is driven independently. The Mecanum wheel is capable of moving in any direction, no need to change the directions the wheel spin. Every one of the four wheels contains a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.

Specification:

Diameter: 127 mm
Width: 51 mm
Number of Rollers: 12
Number of Bearing: 24
Number of Plates: 2
Body material: Aluminium alloy
Roller material: Polyurethane
Spacer material: Aluminum
Net weight: 500 g*4
Load capacity: 45kg/set

Package List:
2 x Right Aluminium Mecanum Wheels 5 inch
2 x Left Aluminium Mecanum Wheels 5 inch

Additional information
Weight2.1 kg
