Casterbot 100mm Mecanum wheels Load Capacity 30kg for AGV Robot Car(4pcs/Packet)
CasterBot 100mm Mecanum wheels Load Capacity 30kg with Bearing
Click to enlarge
HomeRobot Parts 100mm Mecanum wheels Load Capacity 30kg with Bearing
Previous product
CasterBot 2.4 inch 60mm Mecanum Wheels Load Capacity 10kg Compatible for LEGO/TT Motor/DC Motor/Servo Motor(4 Pcs/Pack)
60mm Mecanum Wheels 2.4 inch Load Capacity 10kg $119.99
Back to products
Next product
Omni Wheels 38mm 1.5 inch Double Plastic with 4mm Coupling
Omni Wheels 38mm 1.5 inch with 4mm Coupling $22.95

100mm Mecanum wheels Load Capacity 30kg with Bearing

$169.95

  • Compact structure, beautiful appearance and reliable quality.
  • 360° movement in all directions.
  • Load Capacity: 30kg/Set.
  • Make four-wheel-drive smart car realize left and right translation, large-angle drift, oblique 45° direction movement, square track movement and other movement modes.
Compare
Add to wishlist
SKU: CB094 Categories: Mecanum Wheels, Robot Parts, Robot Wheels Tags: andymark mecanum wheels, mecanum wheel nexus, mecanum wheel set, Mecanum Wheels, mecanum wheels 100mm, mecanum wheels 4 inch, mecanum wheels vex
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

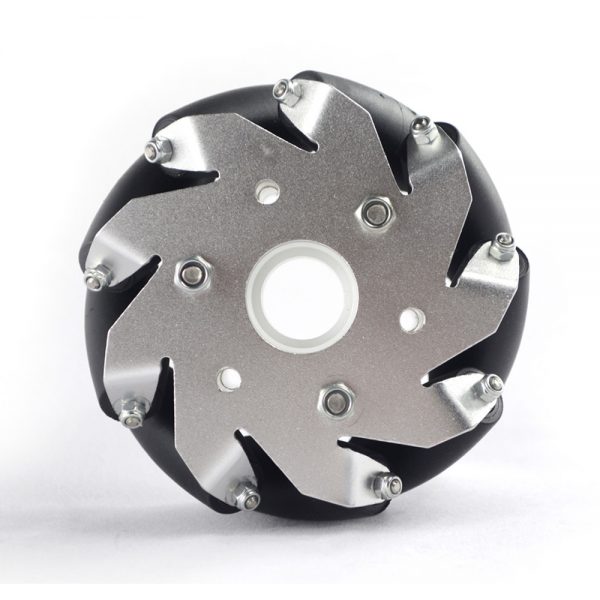

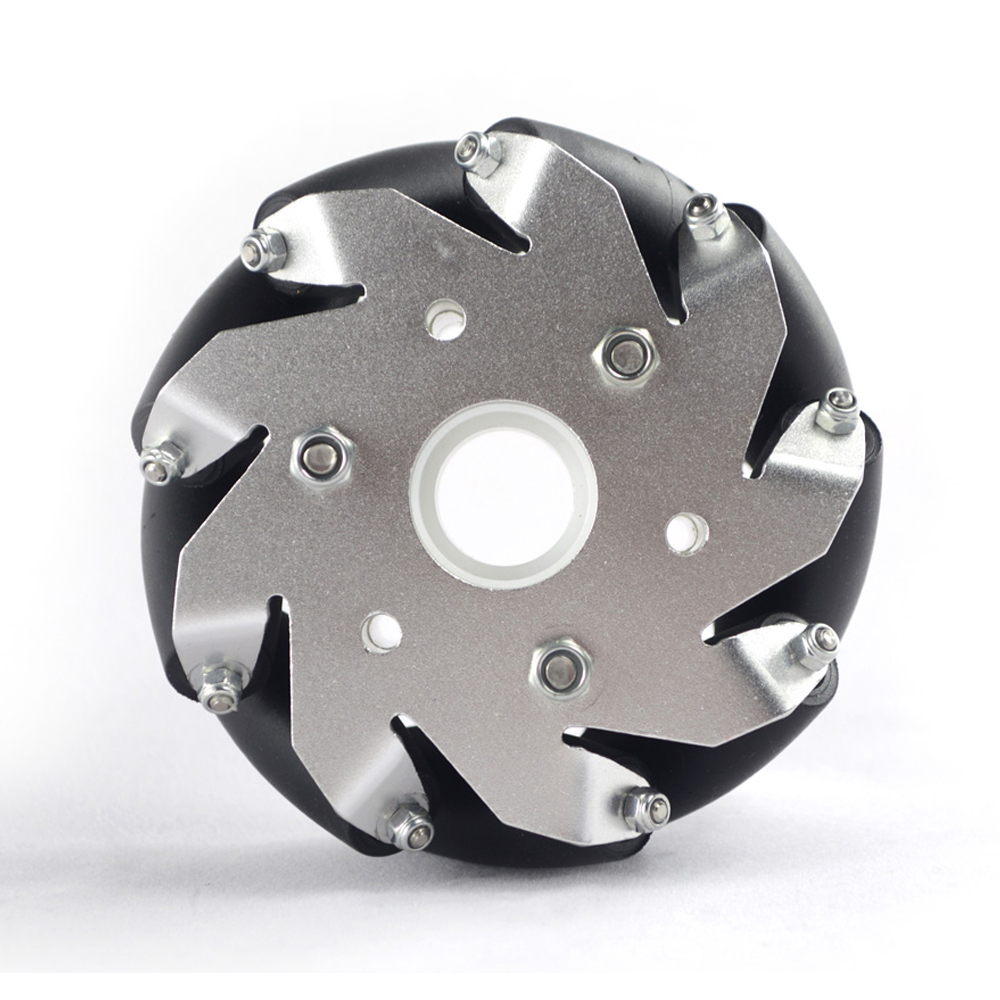

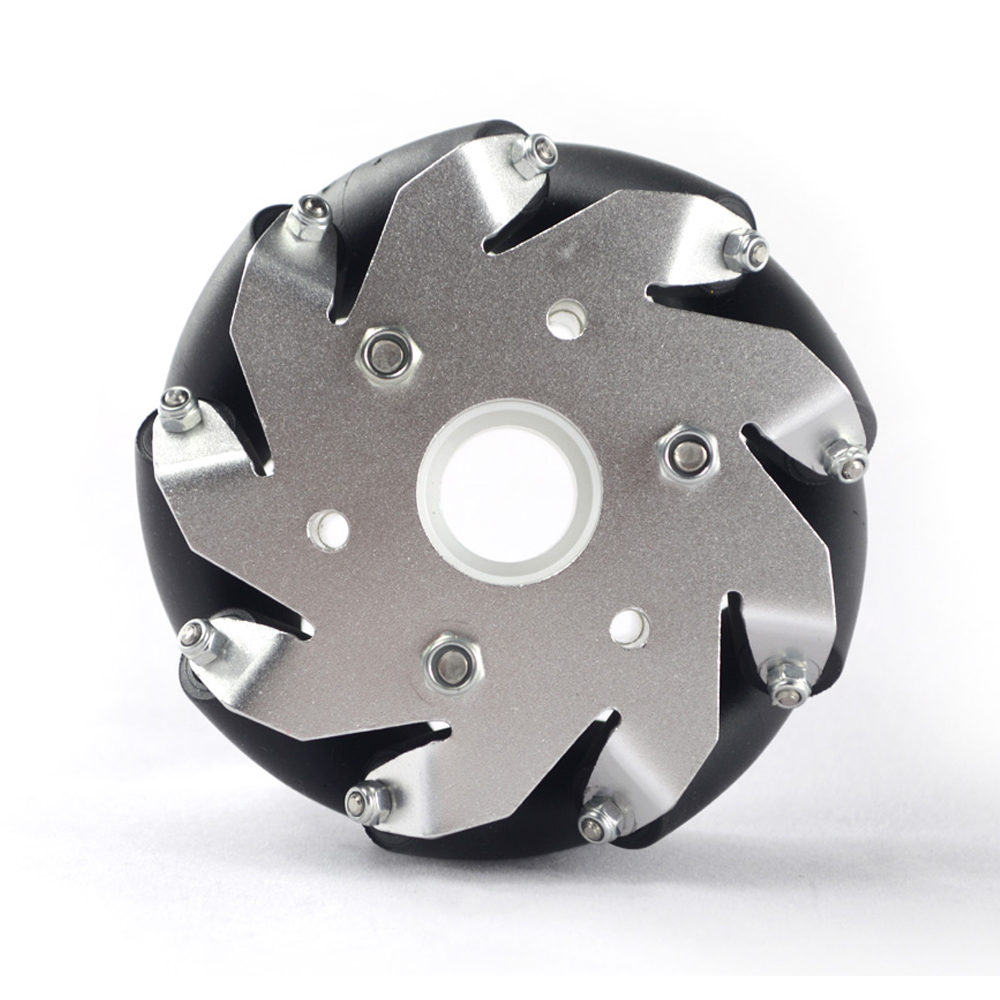

Casterbot 100mm Mecanum wheels 4 inch with Bearing Load Capacity 30kg for AGV Robot Car(4pcs/Packet)

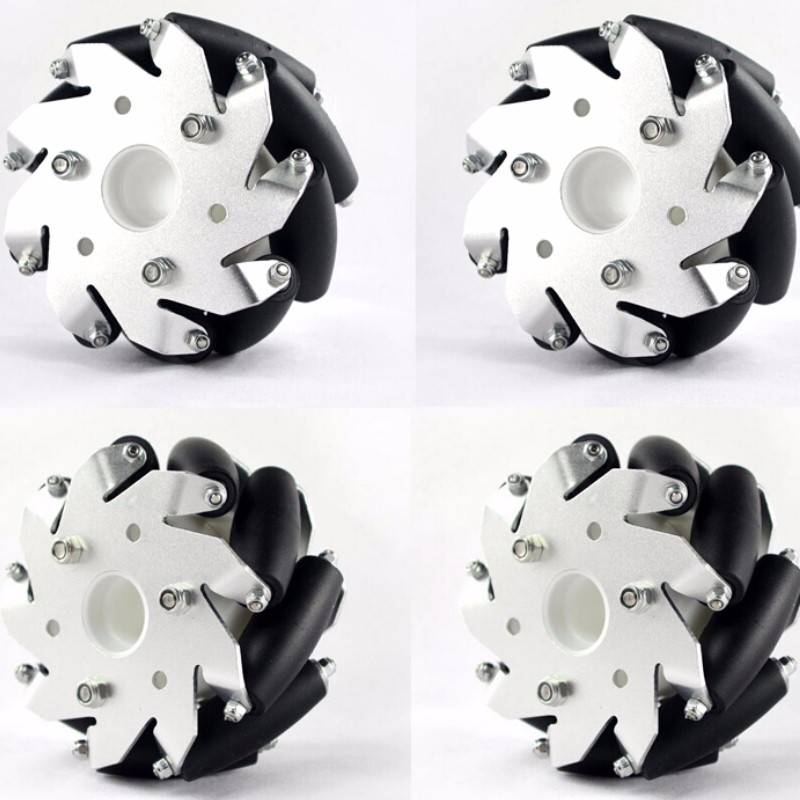

The set of 100mm Mecanum wheel includes 2 right mecanum wheels and 2 left mecanum wheels.
Each wheel is comprised of 9 rollers.It is driven independently. Mecanum wheel can be capable of moving in any direction,no need to change the directions the wheel spin.
Every of the four wheels contain a series of rollers which have an axis of rotation at 45°to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference. We can provide many colors of Aluminum plates for wheels to meet your requirements.

This is a compact structure, flexible movement and durable in use omnidirectional mecanum wheel for all types of smart robot cars. Compared to other common wheels, this mecanum wheel can allow your car to achieve 360° movement for faster travel in a variety of environmental terrains. It compatible with all kinds of motor coupling,such as 6mm / 8mm / 10mm / 12mm / 16mm motor coupling. Making it easy to build an Omni-directional mobile smart AGV robot car.

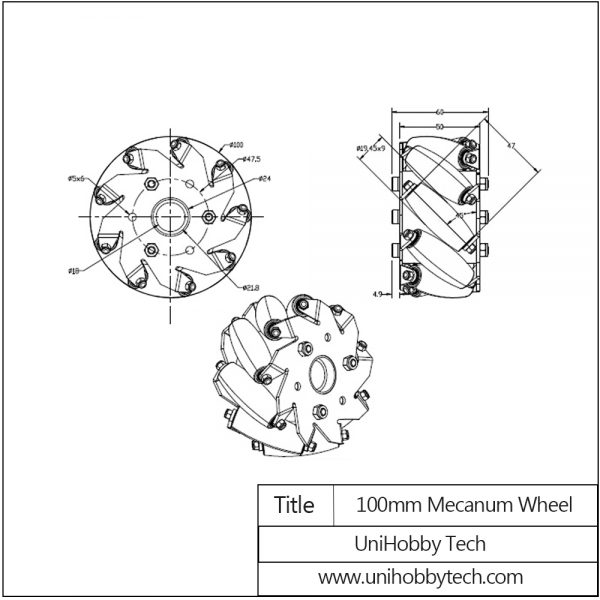

100mm Mecanum Wheels Specifications:

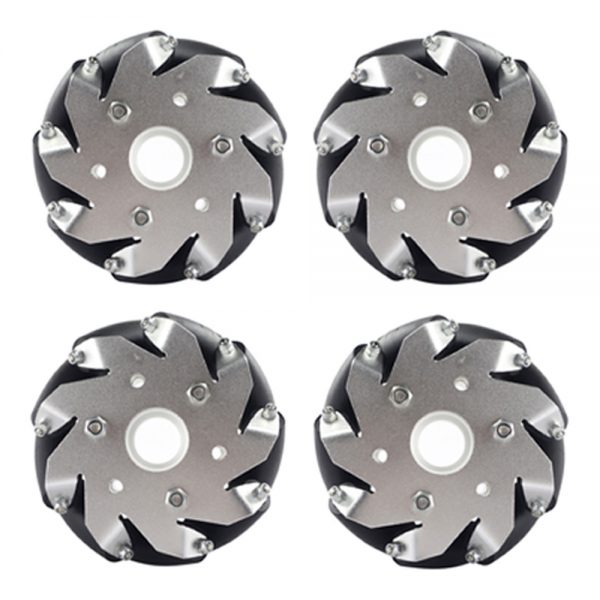

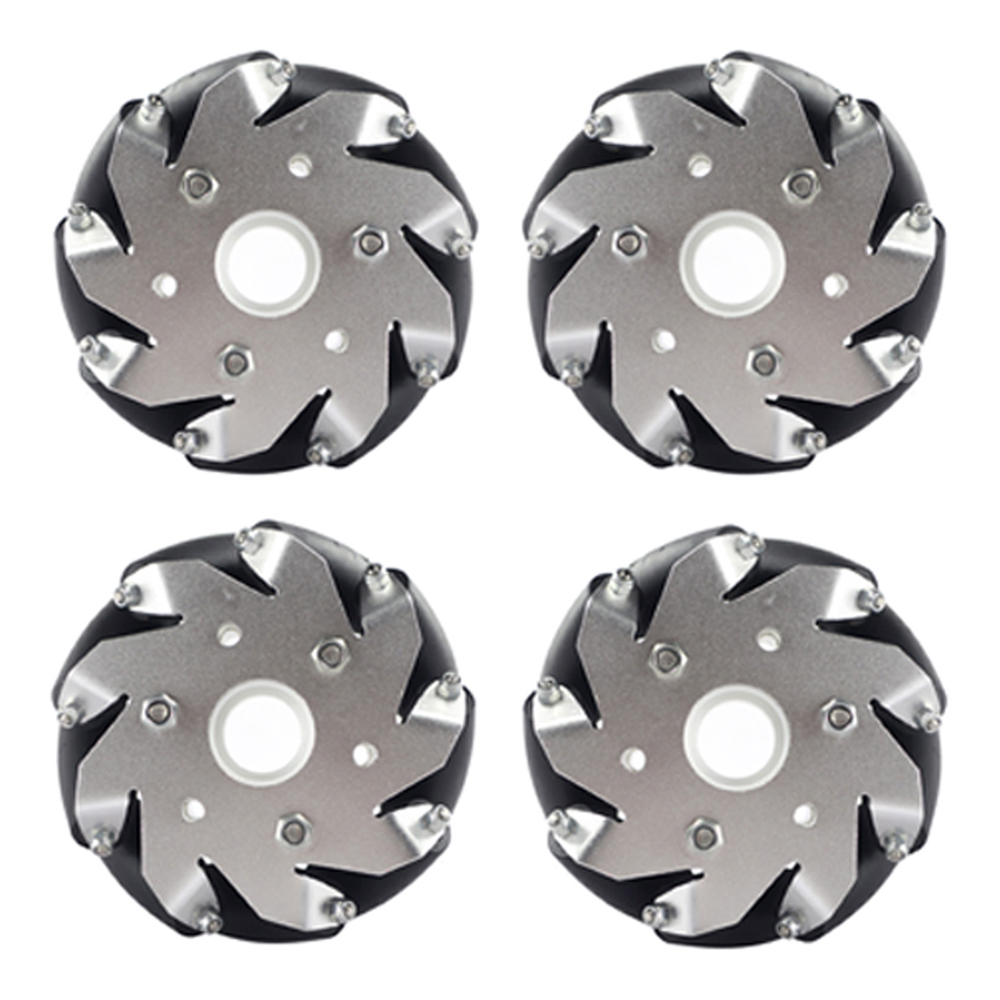

Number of Mecanum wheels: 4 pcs/set
Diameter of each mecanum wheel: 100 mm
Width of each wheel: 50 mm
Number of Rollers each wheel: 9 pcs

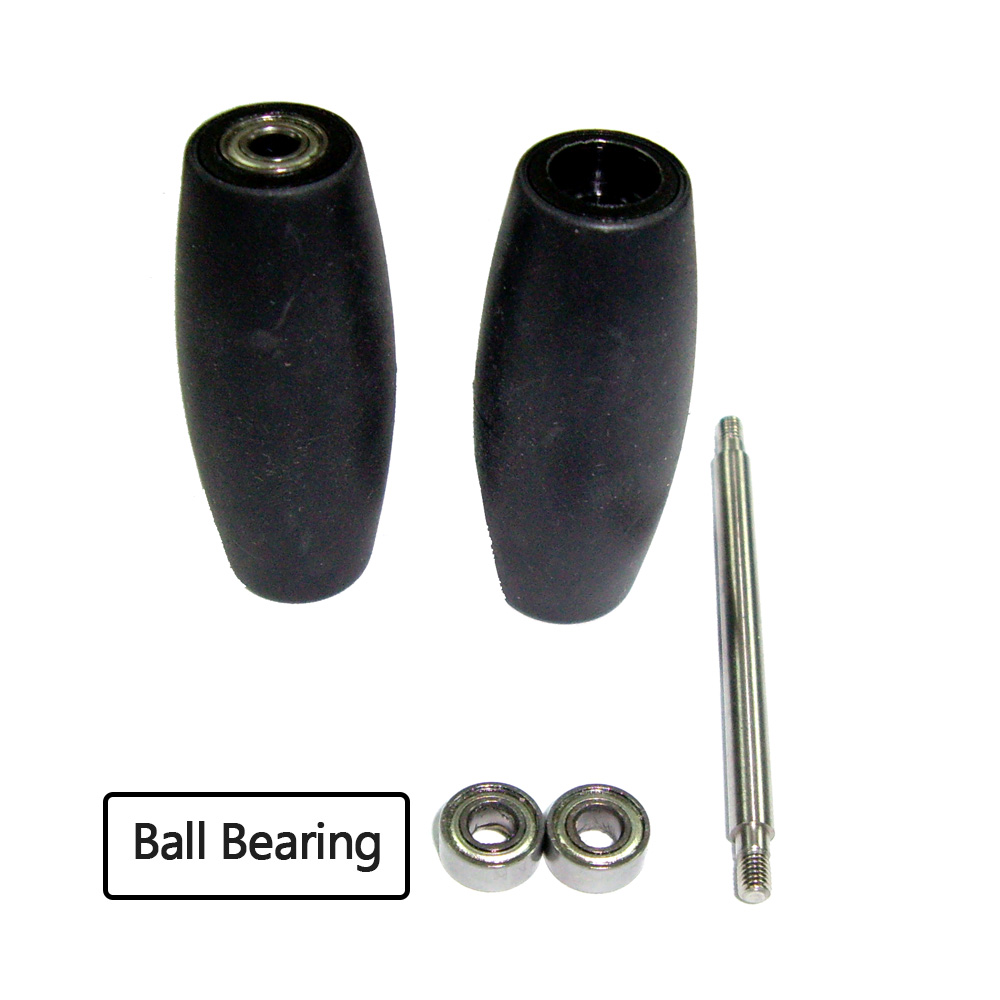

Number of bearing: 18 pcs each wheel
Number of Plates each wheel: 2 pcs
Body material: Aluminum alloy
Roller material: PP+PE
Spacer Material: Nylon
Length of roller:19mm
Net weight:400 g x 4
Load Capacity: 30kg/Set

100mm Mecanum Wheels Packing List:
2 x Right Mecanum Wheels
2 x Left Mecanum Wheels

Compatible motor coupling buy here:

6mm motor coupling C18B007
8mm motor coupling C18B008
10mm motor coupling C18B009
12mm motor coupling C18B010
16mm motor coupling C18B012
12mm Keyway motor coupling C18B017

Here to Buy 4 inch Mecanum wheels without Bearing

Additional information
Weight1.8 kg
