Omni Wheels 38mm 1.5 inch Double Plastic with 4mm Coupling
Omni Wheels 38mm 1.5 inch Double Plastic with 4mm Coupling
1.5 inch 38mm 90° omni wheel 14184
1.5 inch 38mm 90° omni wheel 14184
Click to enlarge
HomeRobot Parts Omni Wheels 38mm 1.5 inch with 4mm Coupling
Previous product
CasterBot 2.4 inch 60mm Mecanum Wheels Load Capacity 10kg Compatible for LEGO/TT Motor/DC Motor/Servo Motor(4 Pcs/Pack)
2.4 inch Mecanum Wheels 60mm Load Capacity 8kg $89.95
Back to products
Next product
10 inch Omni Wheels 254mm Heavy Duty Omni-directional wheels,Load capacity:500KG/pcs
Heavy Duty Omni-directional wheels 254mm Load capacity 500KG $1,599.95

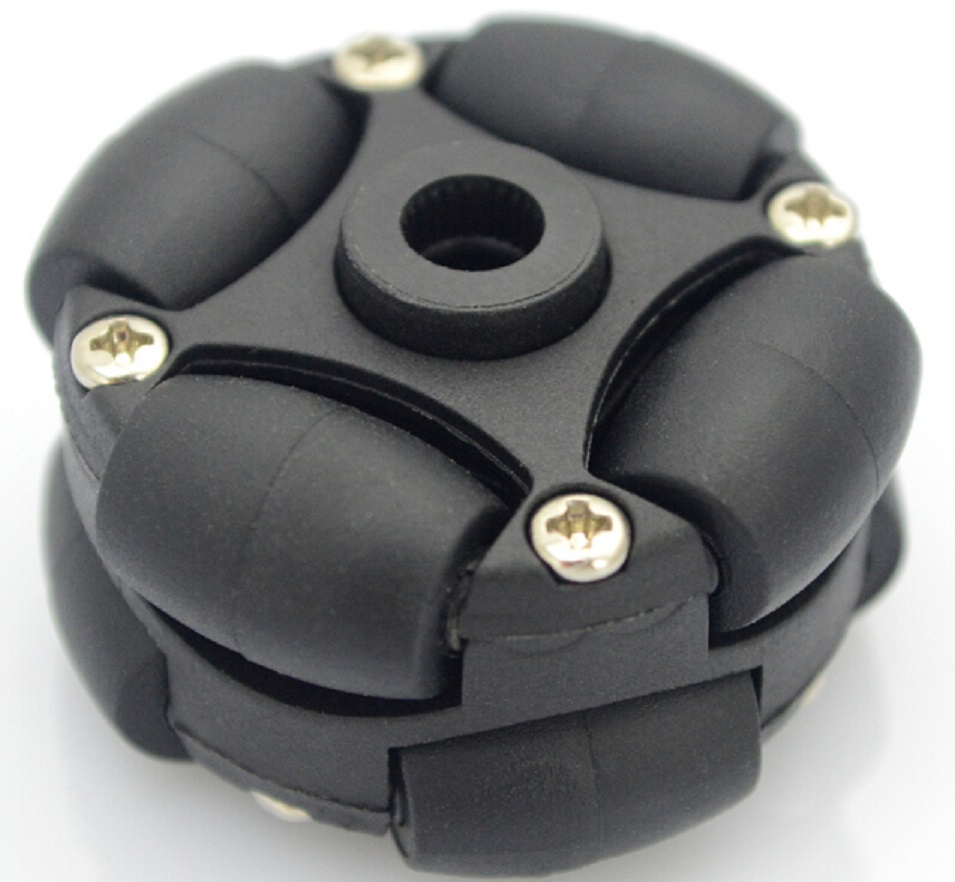

Omni Wheels 38mm 1.5 inch with 4mm Coupling

$22.95

  • 38mm 1.5inch Double Plastic Omni Wheels with 4mm mounting coupling for Omni wheel Robot car
  • It is unique as they are able to roll freely in two directions.And this 38mm omni wheel has 8 PU rollers.
  • It's rollers are more durable, robust and flexible to provide the wheel 360 degree movement easily.
  • This 38mm omni wheel apply to the small robot cars , robot platforms, small toys and so on.
  • This Omni Wheel include 4mm coupling for 4mm dc motor shaft, load capacity 2 kg.
Compare
Add to wishlist
SKU: CB184 Categories: Omni Wheels, Robot Parts, Robot Wheels Tags: Omni Wheel, Omni Wheels, Omni Wheels 1.5 inch, Omni Wheels 38mm, Omni wheels lego
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

Double Plastic Omni Wheels 38mm 1.5 inch with 4mm Coupling use for Arduino/Raspberry Pi/Microbit robot car project.

This Omni wheels is the smallest omni-directional wheel in all of CasterBot omni wheels. It is unique as they are able to roll freely in two directions.And this omni wheels 38mm has 8 PU rollers. Its rollers are more durable, robust and flexible to provide the wheel 360 degree movement easily. This omni wheel apply to the small robot cars , robot platforms, small toys and so on.

Omni wheels or poly wheels, similar to Mecanum wheel, are wheels with small discs (called rollers) around the circumference which are perpendicular to the turning direction. The effect is that the wheel can be driven with full force, but will also slide laterally with great ease. These wheels are often employed in holonomic drive systems.

Omni wheels combined with conventional wheels provide unique performance properties, such as on a six-wheeled vehicle employing two conventional wheels on a center axle and four omni wheels on front and rear axles.

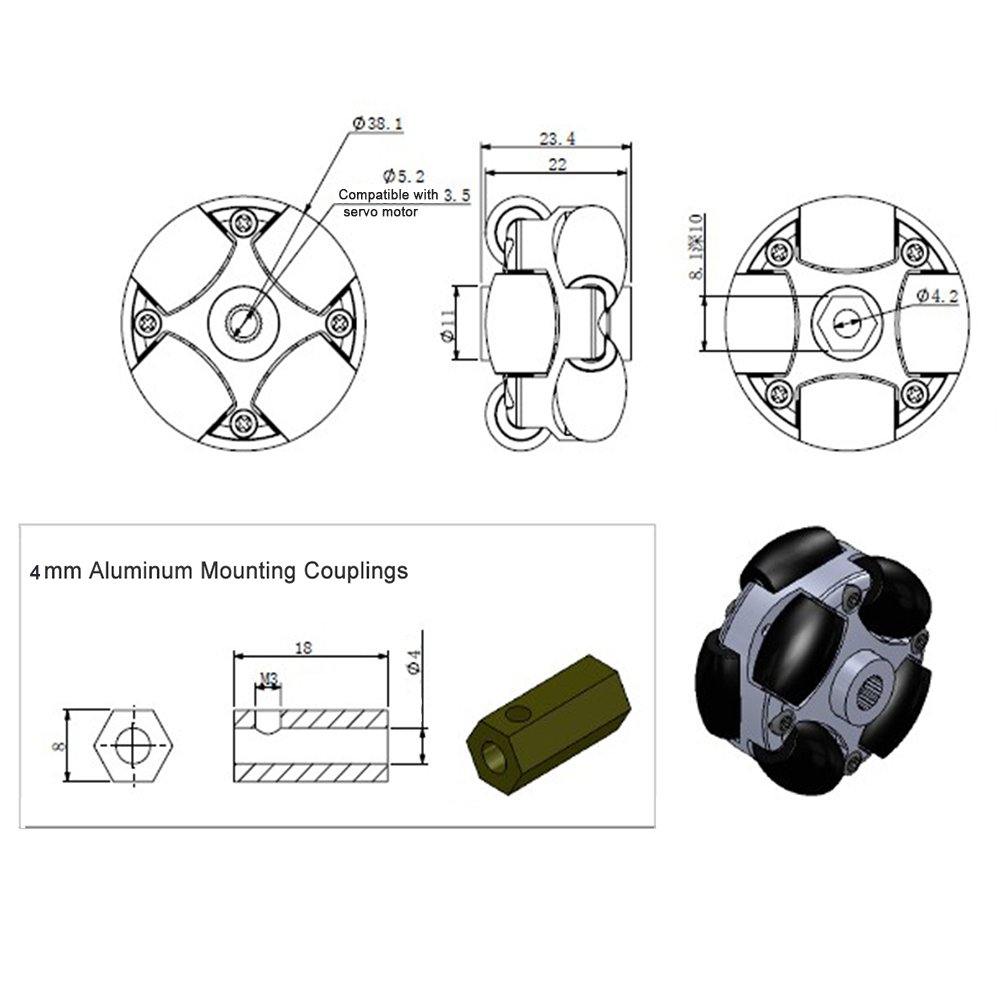

Key Features:
Diameter: 38mm
Width: 23.4mm
Axial width: 4mm
Number of plate: 2
Number of roller: 8
Body material: Plastic
Roller material: TPR
Net weight: 20g
Load capacity: 2 kg

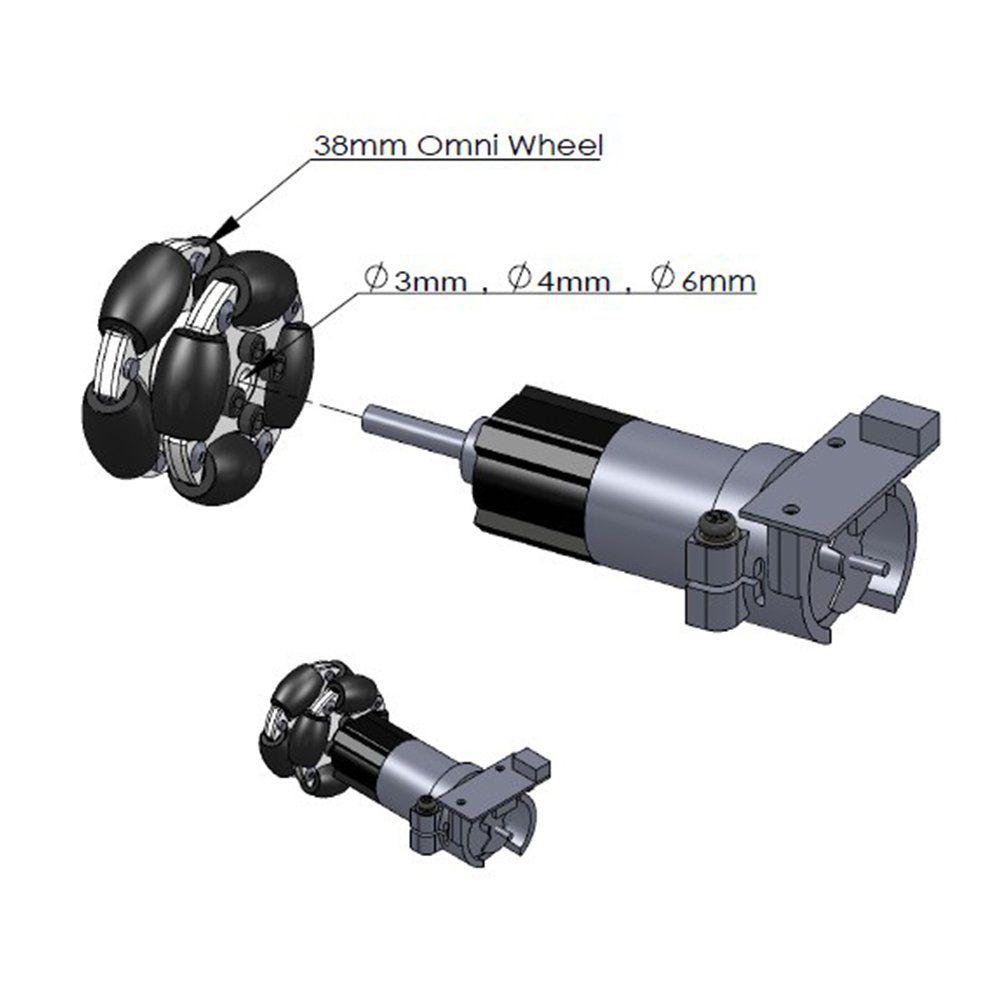

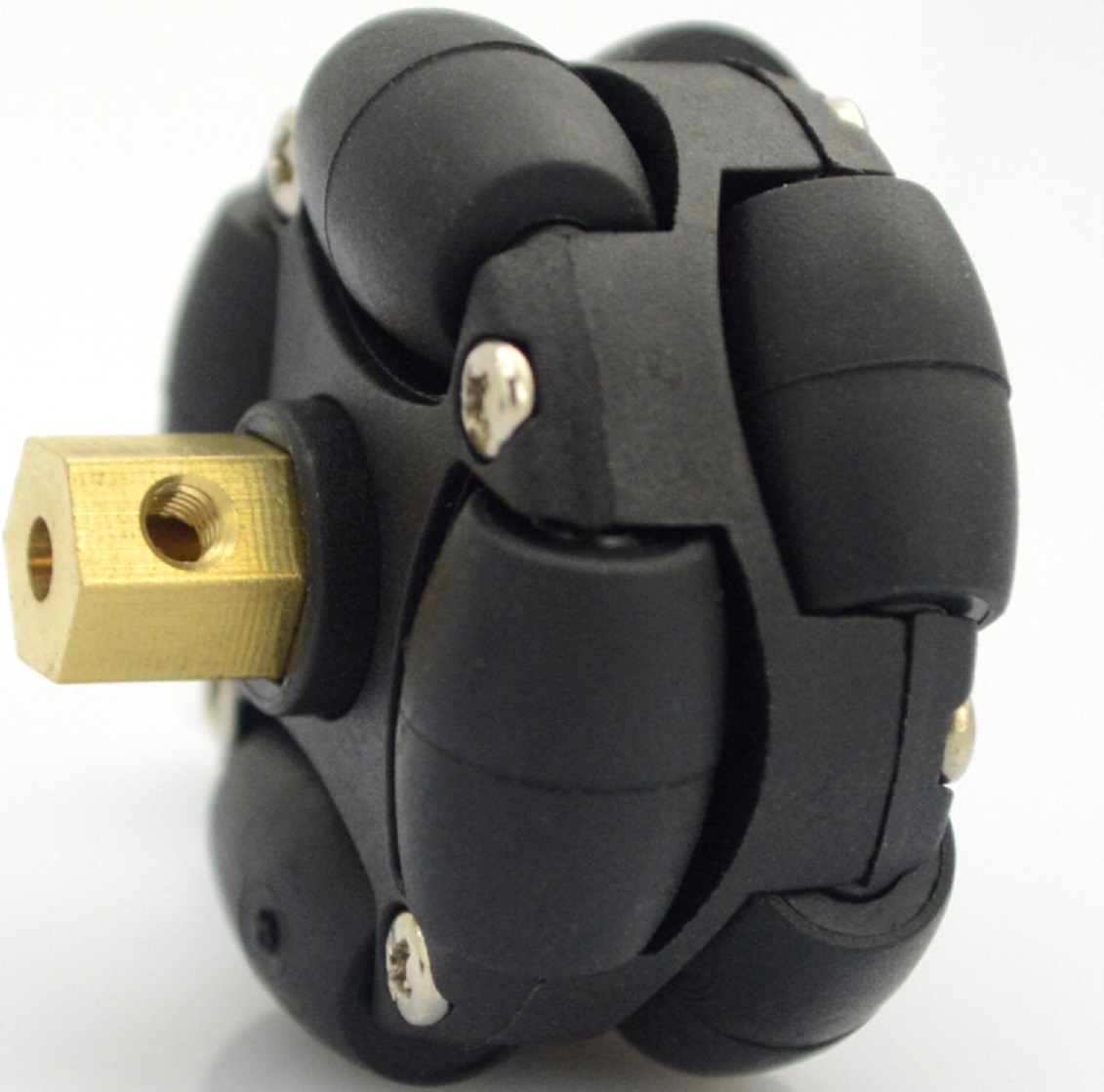

This Omni Wheel include 4mm coupling.

Packeting List:
1 x Double Plastic Omni Wheel 38mm (1.5inch)
1x 4mm coupling

Additional information
Weight0.3 kg
