CasterBot 5 Inch Heavy Duty Mecanum Wheels 127mm Industrial Wheel Load capacity: 350kg/Set
CasterBot 5 Inch Heavy Duty Mecanum Wheels 127mm Industrial Wheel Load capacity: 350kg/Set
CasterBot 5 Inch Heavy Duty Mecanum Wheels 127mm Industrial Wheel Load capacity: 350kg/Set
Click to enlarge
HomeRobot Parts 5 Inch Heavyduty Mecanum Wheels 127mm Industrial Wheel
Previous product
4 Inch Heavy Duty Mecanum Wheel 100mm Industrial Wheels
4 Inch Heavy Duty Mecanum Wheel 100mm Industrial Wheels $399.95
Back to products
Next product
5 Inch Aluminium Mecanum Wheels 127mm Load Capacity 45kg/Set
5 Inch Aluminium Mecanum Wheels 127mm Load Capacity 45kg/Set $159.95

5 Inch Heavyduty Mecanum Wheels 127mm Industrial Wheel

$499.95

Compare
Add to wishlist
SKU: CBNM127A Categories: Mecanum Wheels, Robot Parts, Robot Wheels Tags: Heavy Duty Mecanum Wheels, mecanum wheel nexus, mecanum wheel set, Mecanum Wheels, Mecanum Wheels 127mm, Mecanum Wheels 5 inch
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
Description

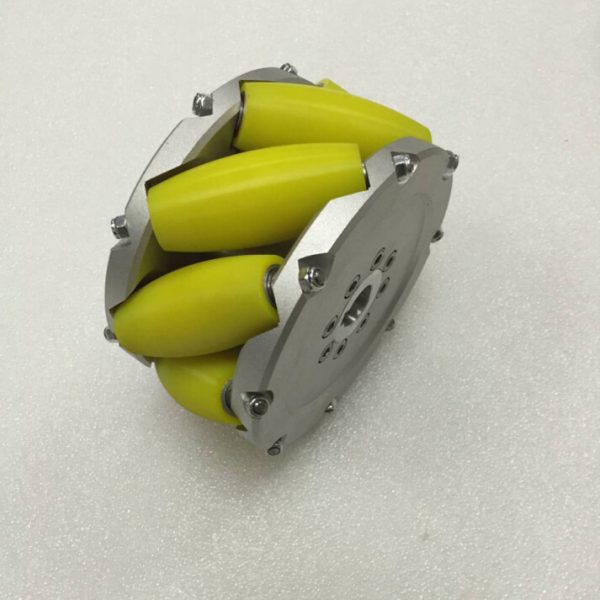

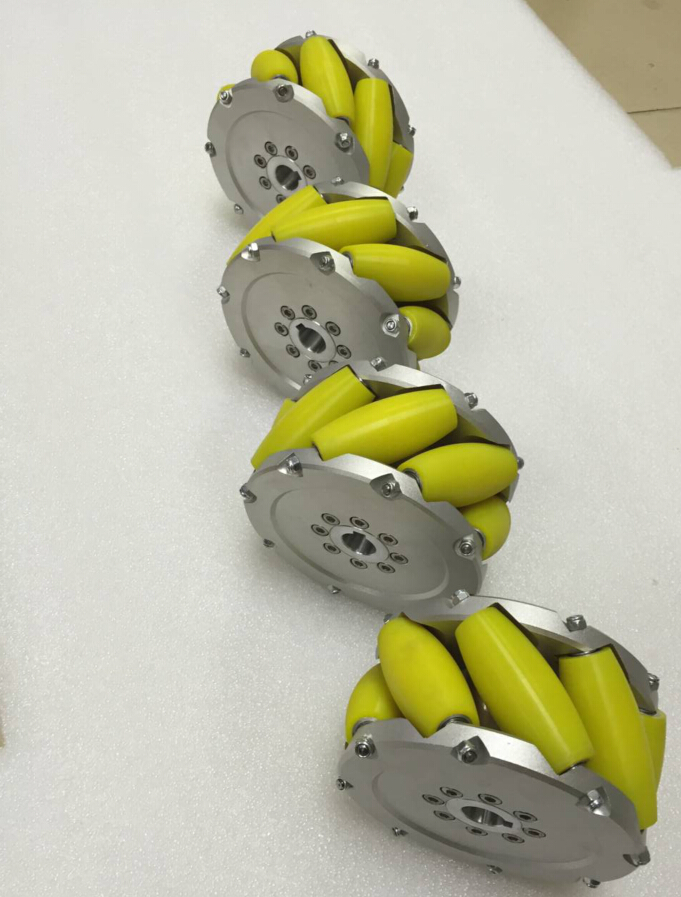

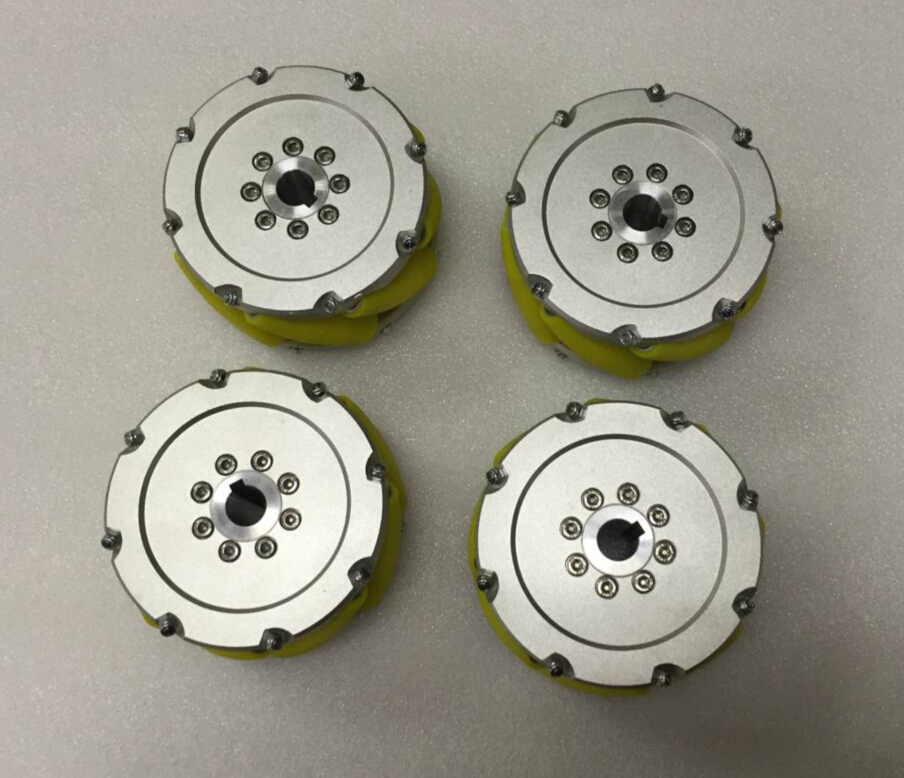

5 Inch Heavyduty Mecanum Wheels 127mm Industrial Wheel Load Capacity 350kg/Set

The 5 Inch Heavyduty Mecanum Wheels Basic Rollers includes 2 right wheels and 2 left wheels. Each wheel is comprised of 8 rollers.

CasterBot Industry Mecanum wheel is Heavy Duty Mecanum Wheel. Each High-strength wheel hub and great-quality material ensure the series an excellent performance. CasterBot Industry Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions. It can be used in industry, install on the heavy duty omni moving platform to make the platform rotate to omni directions. And it mainly used in industry , workshop, AGV and so on . It can even used on stage show equipment.

It is driven independently. The Mecanum wheel is capable of moving in any direction, no need to change the directions the wheel spin. Every one of the four wheels contains a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.

Specification:

Diameter: 127mm(5 inch)
Width: 66mm
Number of Rollers: 8
Number of Plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with Polyurethane coated
Net weight: 1.8kg *4
Load capacity: 350kg/Set

Package List:
2 x Right Heavy Duty Mecanum Wheels 127mm
2 x Left Heavy Duty Mecanum Wheels 127mm

Additional information
Weight9.8 kg
